Visible Wavelength Combiner
Description
JBTX’s Visible Wavelength Combiners are single mode optical fiber components and modules. They enable any two or three primary colours in the visible wavelength region to be combined or separated.
Combiners are available for either 2 or 3 wavelengths: 2 wavelength combiners combine red/green, blue/green or red/blue. 3 wavelength combiners provide full RGB operation; enabling full colour displays.
Key Features
2 or 3 color combining or separating
High power handing
High stability and reliability
Applications
Visible and display systems
Sensors
Biomedical equipment
Research

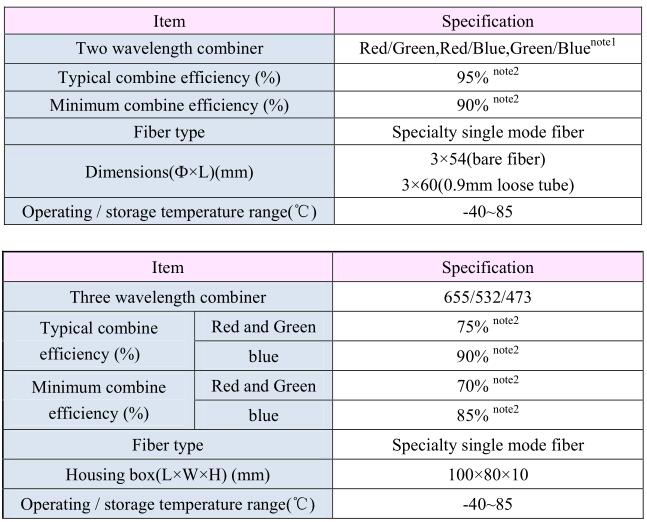

Specifications
Note1: Red can be 630,633,655nm, Green can be 532nm, Blue can be 457,473,488nm.
Note2: The combine efficiency may different from the table value due to different wavelengths.
Note3: The above specification is without connector.

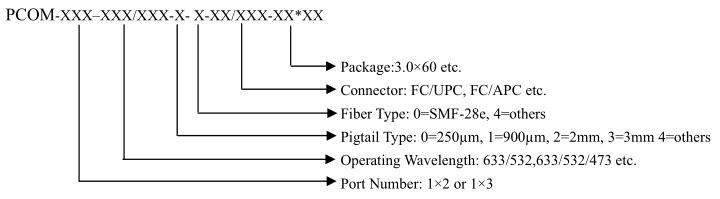

Ordering Information
